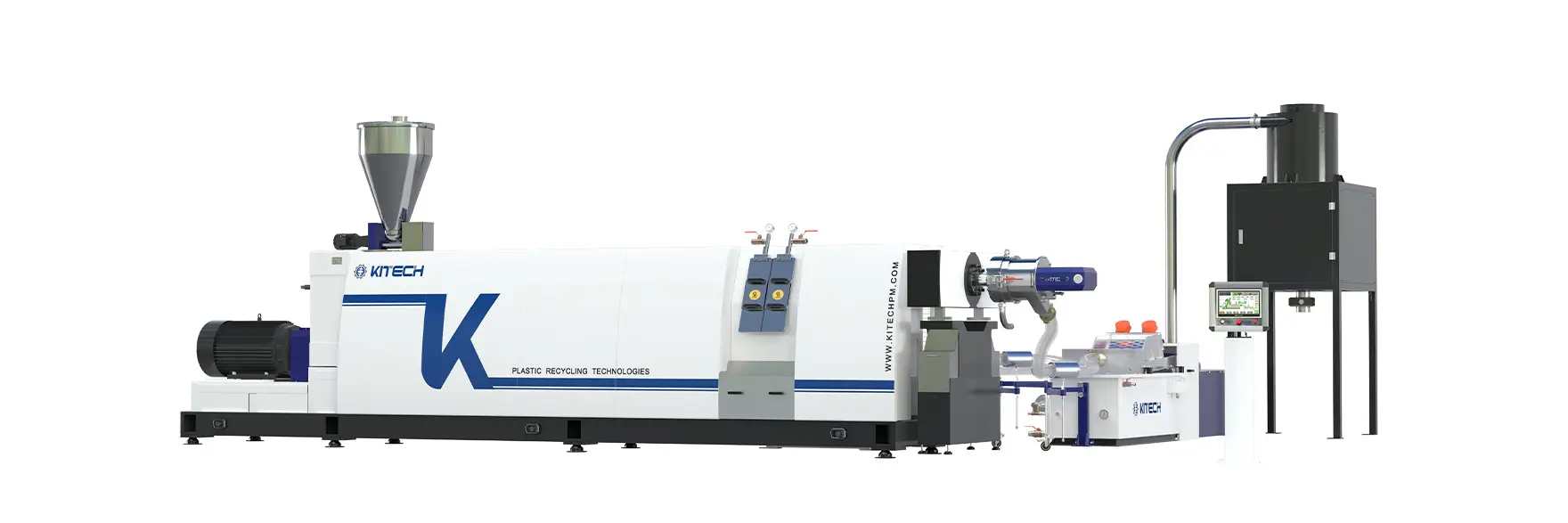

KSP series single stage pelletizing machine

The KSP series single screw extruding and Recycling granulating system is specialized for rigid plastic scrap. It combines function of raw materials feeding , plasticization ,Granulating  and drying.this machine is sutible for the after crushing/Shredding rigid flakes,such as PP PE ABS PS HIPS PC etc.

The machine made final uniform pellets/Granules could be as the injection molding ,film blowing ,pipe extrusion application .

Product Parameters

Brand KITECH
Machine model KSP Series
Raw materials for pelletizing HDPE, LDPE, PP, PS,ABS, PET,PA
Machine capacity per hour 200-1200KG/H
Screw diameter 80-200mm
Materials of Screw 38CrMoAlA (SACM-645), Bimetal (Optional)
System composition Screw Loader, Single Screw Extruder, Filter, Vacuum Degassing, Pelletizer, Water Cooling Device, Dehydration Section,Conveyor Fan, Packing Silo.
L/D Ratio 25-38(Will adjust accordingly according to the raw materials)
Heater of Barrel Ceramic heater or Far-infrared heater
Pelletizing type Water-ring pelletizing; water-strands pelletizing, Under-water pelletizing
Provided services Turn key recycling solution design ,production ,factory installation ,commission and machine maintenance
Certificate provide CE,UL
Machine warranty 1 Year

product details

1 (10)

Screw loader

1 After Crushing/Shredding raw materials are feed into screw loader , conveyed into the single screw extruder by screw loader .

2 Feeding speed adjustable by inverter controller according to the feeding amount.

3 The raw materials of conveying pipe are stainless steel, the typical capacity are customized .

2 (8)

Single screw extruder

1 High efficiency barrel and screw used for plastic granulating  with excellent plasticizing result and high output capacity.

2 Extruder with equiped with protection cover ,extryder running speed adjustable by inverter .

3 Adopt high wear resistant alloy material to ensure 1.5 times service life of normal one .

3 (9)

Degassing system

1 Double chamber design,  realizing non-stop operation.

2 Equipped with vacuum pump and waste water tank .

3 Double vacuum degassing to get rid of the low molecular, moisture and printing ink efficiency to improve the final plastic pellets /ganules quality.

Plate type filtration (2)

Plate type filtration

1.Single-board, dual-station design ,with lifting rings to facilitate installation and maintenance. 2.Ceramic heaters are provided on both sides to maintain the temperature of the material.

3.Equipped with Gefran pressure sensor, when the pressure in front of the network is more than 12 MPa, it will prompt to change the screen.

柱式换网 2 pston type filter (2)

Piston type filtration

1Longer screen lifetime, reducing screen change frequency

2Easy to use and none-stop type: easy and quick screen change and do not need to stop the machine

Auto-clean filter 2

Auto-clean filter

1 The self-cleaning mesh changer is made of double-mesh cemented carbide with less wear and longer service life.

2This type of screen changer can automatically clean the impurities in the screen plate, reduce the drainage loss.

3It can regulate the constant waste discharge according to the pressure It can reduce the cost of manual screen changer

Pelletizier unit (2)

Pelletizier unit

1Cutter blade materials :D2

2 Equipped with shock-proof pressure gauge to measure discharge pressure.

3 New European design water ring pelletizer, Cutting speed adjustable by inverter, PLC control speed according to melt pressure automatically to get uniform size granules.

Vibration dryer

Vibration&Drying system

1 With heater exchanger at water tank for cooling. Make the water recycling for saving water consumption.

2 Vibration dryer combined with horizontal type centrifugal dryer to get well dried final granules.

未标题-3 (2)

Packing system

1The final qualified pellets are stored in the silo ,the drying system could dry the pellets well .

2 Provide machine capactiy setting Online monitoring weighing &packaging

4 (6)

Plastic pellets

1 Final cleaned and dryer pellets .

2 Could be re-used as raw materials for injection and molding application.

3 (8)

Touch screen panel

1 Adopt famous electrical brands :Such as:Siemens,Schneider,ABB etc

1 One button stop and start the whole system automaticlly .

2 Could provide PLC Intergrated intelligent controlling and HMI.Resulting in more easy operation and less labors cost during .

5 (7)

KSP series single stage pelletizing machine

1 Optimized design and top brand component to each unit .whichcould minimize the downtime ratio and save the machine maintenance time.

2 The modular design could simplify the planning and accelerate the implementation.The system have very low consumption values for electricity ,water ,and labor .

3 PLC Controlling whole line ,more easy operation,Labor costs saving .

4 Machine warranty with sufficient spare parts in stack ,delivery in-time .
