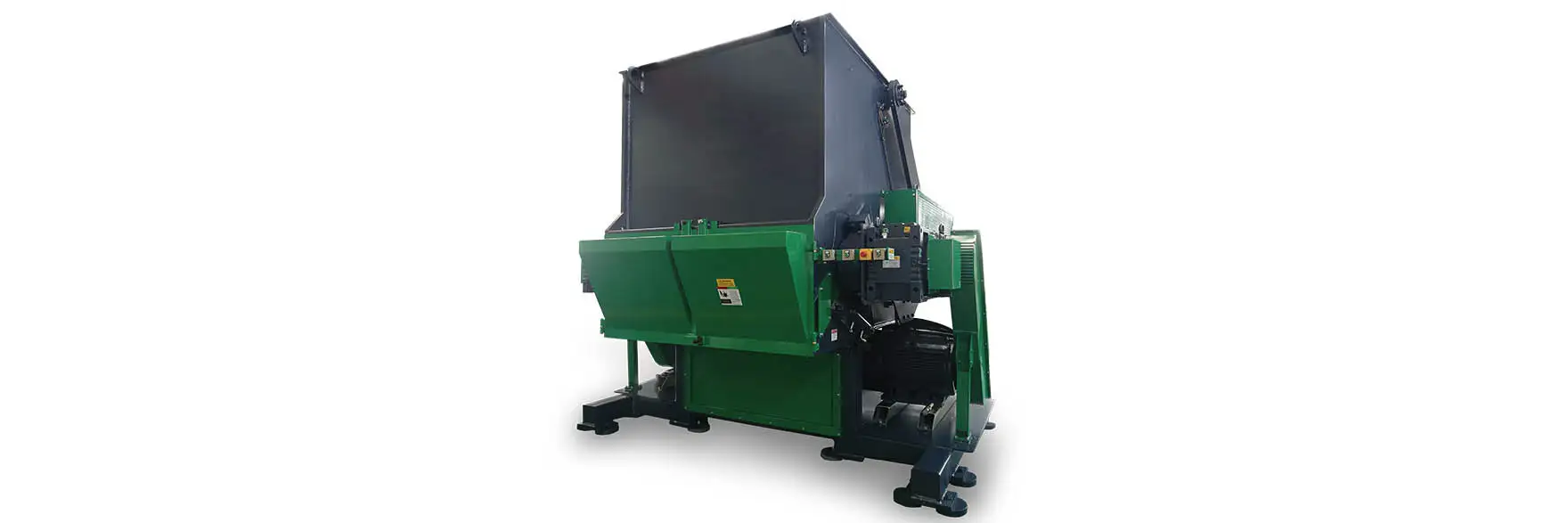

AGX series Heavy Duty Plastic Shredder Machine - Kitech

The AGX series of heavy-duty single-shaft shredders has been developed based on the AGS series of standard single-shaft shredders. Its main features include PLC intelligent control and a robust wear-resistant structural design.

This series of shredder can meet customers' demands for high-capacity shredding, and it is particularly suitable for a variety of single or mixed materials, such as wide-width or thicker waste cardboard, large appliance shells, waste paint cans, domestic waste, automobile tires, catalytic converters and PP jumbo bags etc. The AGX Heavy Duty Single Shaft Shredder has a 750mm diameter profiled rotor made of solid steel, operating at a speed of 52rpm. The concave ground, aggressive 4-way rotating knives are mounted in the grooves of the profiled rotor with special knife holders. This enables a reduction of the cutting gap between the counter knives and the rotor which guarantees a high flow rate, low power consumption, and maximum output of shredded material.

1.1 Large diameter flat rotor

Heavy duty guide bearings and bearing housings

Low speed, high torque geared drive

Siemens or WEG motors,High Efficiency,Low Energy Consumption and Reliable.

Powerful swing type hydraulic pusher to effectively avoid material blockage

Special designed hopper to avoid material flying out

The screen mounted beneath the rotor determines the size of the required flakes. Z-type and O-type screens can be selected according to the material

PLC control system, Flexibility and Programmability,Ease of Maintenance and Troubleshooting.
